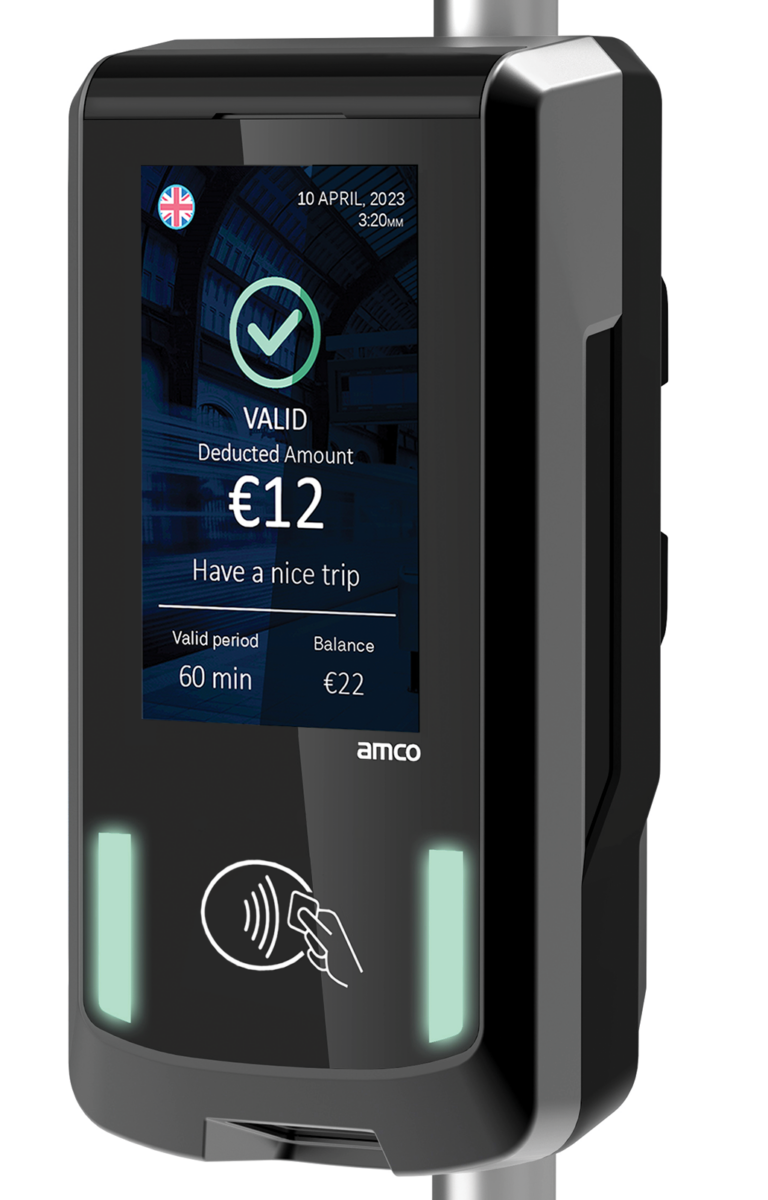

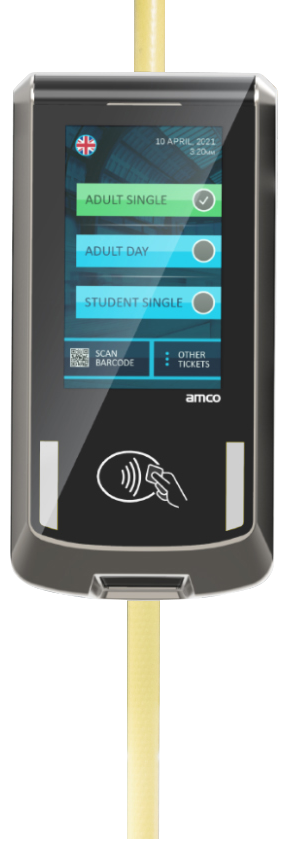

SV-360 Contactless Validator

Tailored to modern passenger needs, SV-360 features a 7″ touch color display, attractive user interface, bright indication LED light bars and a 3W audio system to ensure instant transactions as well as enhance rider’s experience. Apart from secure and unhindered validation transactions, this device is the ultimate marketing tool through promotional videos and animations on the display. Its uniqueness lies in its ability to combine fare collection with mobile marketing, by communicating to passengers retail offers and discounts from companies cooperating with the transport operator for each route.

• Elegant, robust and high quality validator suitable for vehicle environment
• 7” projected capacitive touch screen with user friendly Interface
• Power CPU for further expandability
• Fare media options like smart cards, printed or mobile QR codes
• Support for NFC and EMV compliant contactless bank cards
• Audio speaker for commuters with vision disabilidisabilities
• Multiple communication interfaces
• Operates as part of fare collection system or as stand-alone validator
• EMVCo Level 1 and EMVCo Level 2 certified solution for contactless bank card payments

Processing Unit

• Embedded powerful ARM cortex processor up to 1.2GHz
• 4 GB flash on-board memory
• Up to 64 GB external flash memory
• Linux OS



User Interface

• Color TFT 7″, resolution 480 x 800, protected by 4mm vandal-proof glass
• Projected Capacitive Touch (PCAP)
• Illuminated LED Bars as transaction indicators
• 3W audio Speaker
• Audio player support
• Sound level detection

Smart Card Support and Compliance

• ISO/IEC 14443 Type A and B
• 2-4 SAM ISO7816 sockets for ID000 Format (SIM-Card)
• Support for MIFARE classic, MIFARE DESFire, MIFARE™ Plus, Calypso
• EMVCo Level 1 and EMVCo Level 2 certification for EMV payments (PayPass and PayWave)

Communication Interfaces

• LAN Ethernet 10/100 Mbit
• RS485/RS232, IBIS
• USB diagnostic port usable for maintenance
• 2 digital I/O
• optional Wi-Fi 11 a/b/g/n
• optional 4G/GPS

Enviroment

• Operating temperature: -25 °C to +70 °C
• Storage Temperature: -30°C to +85°C
• Humidity: 15% to 95% non-condensinp

Power Supply

• 9 to 3 6 V DC — polarity inversion protection
• Power consumption: max 8W

Housing

• Robust PC-ABS material for automotive equipment
• Protection Index IP54/ IK08 (optional IK10)
• Dimensions: Height 310mm, Width 156mm, Depth 8Omm
• Weight approximately 1,6Kg

Mounting

• The validator is mounted on a base, which can be mounted on vertical as well as horizontal grab bars of diameters from 30mm to 35mm
• Time to mount or dismount approx. 20sec
